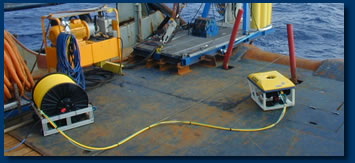

ROV on deck off Tunsia

System Components

  • Hytec H300 Inspection-class ROV system
    • capable of operating at depths of up to 300 meters
    • 300 meter umbilical cable on reel
    • 50 meter demo / test umbilical cable
    • 4 Technadyne 435W thrusters - 2 forward/reverse, 1 vertical, 1 lateral
    • 3 axis fluxgate compass - auto heading function
    • solid state depth sensor - auto depth function
    • surface control unit incorporating computer, manual control panel, and monitor
    • 2D laser measurement system
    • ROV dimensions: L 84 cm., W 60 cm., H 47 cm.
    • ROV weight in air: approx. 80 kg. in standard configuration
  • Video Components
    • primary camera - Sony FCB Series PAL zoom colour camera on pan / tilt head
      • 150 watts of halogen lighting on pan / tilt head
    • navigation camera - B&W, low light, wide angle, fixed position
      • additional 150 watts of halogen lighting fixed to vehicle
    • rear camera - B&W, low light, wide angle, fixed position
    • video recorders
      • primary - Sony RDX-HX750 HDD/DVD 160 GB Recorder
      • secondary - Sony DSR-25 DVCAM digital VCR
    • 2) 17" LCD flat screens for remote video & tracking display
    • 26" Barco auxiliary colour monitor
  • TRACKING SYSTEM - LinkQuest TrackLink 1500 USBL
    • TC1500LC transceiver
    • TN1505BR transponder
    • TN1505B transponder
    • Garmin 48XL GPS input
    • KVH Azimuth 1000 digital compass input
    • laptop for interface and track recording
  • NAVIGATION SONAR SYSTEM - Sonavision Mercury
    • variable frequency; 600 to 1200 kHZ
    • 100 to 40 meter range
    • laptop for sonar display and data / image recording
  • MANIPULATOR - Hydro-Lek 5 function hydraulic arm with grab and cutter
  • pLARS - Platform Launch and Recovery System
    • air gaps to 30 metres
    • max total drop of 100 metres
    • pneumatic winch
    • compact base A-frame - 1.4m x 2.8m
  • Honda EM4500 regulated output generator for ROV, controller, and video recorders
    • Uninteruptable Power Supply for control system
  • Electrical control panel for power distribution and voltage/current monitoring
  • Fiat Ducato 15 van for transport and shore/quayside operation
    • installed structure for secure transport
    • console for in-van operation
    • operator and observer seating
    • pressurized fresh water system for equipment wash-down
    • kettle for making the tea

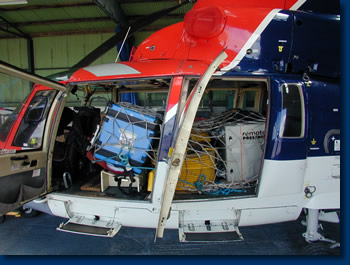

ROV system in chopper
ROV System ready for helicopter dispatch.

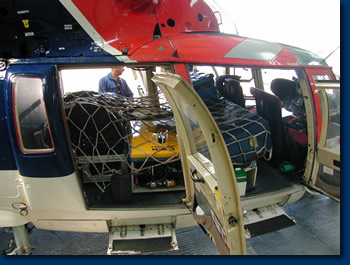

ROV system in helicopter
Total weight ~650 kg., volume ~2.5m3 (depending on configuration).
Details of all weights and dimensions are available.
New pLARS (Platform Launch and Recovery System) mobilized on Marathon's KHGF Platform Bravo
pLARS folder for transport ROV platform launch system platform launch & recovery system
Collapsed for transport.
Fits inside a 10' container or half-height
Mobilization in less than 12 hours. Total weight 750 kg. not including ROV.
Underwater Inspection Systems
by
HYTEC
Hydro-Technologie
Montpellier, France
WEB http://www.hytec.fr
